Integrated S3-Browser

On this page, you can find an explanation of how to use Object Storage with its integrated S3-Browser in the Cloud Console, how to create and delete buckets, how to navigate through folders and files, upload and download files and instructions for other steps to manage an Object Storage effectively in the Cloud Console.

Table of contents

Introduction

In the Cloud Console, you have the option to use Object Storage with its integrated S3-Browser, which offers essential Object Storage functionality.

With our S3 browser, you can perform the following actions:

  • Browse already created buckets and the files stored within them, even if they were created using different APIs or third-party tools;
  • Create new buckets;
  • Delete buckets;
  • Set a bucket to private or public access;
  • Navigate through folders and files inside a bucket;
  • Create a folder structure inside a bucket;
  • Upload files to a bucket;
  • Download separate files from the buckets;
  • Delete files from a bucket;
  • Obtain public links for buckets, folders, and individual files.

This integrated S3 browser provides an efficient and user-friendly way to manage your Object Storage resources within the Cloud Console.

But before we start using integrated S3-Browser we need to create Object Storage credentials that include the access key and secret key.

To find instructions of how to create Object Storage Credentials in the Cloud Console, please, see the article - Object Storage Credentials

S3 Buckets page

To get inside the integrated S3-Browser select the Storage from the VIRTUAL DATACENTER block in the side-bar menu and click the S3 Browser TAB:

These actions will redirect you to the Object Storage Credentials page and if you have already created Object Storage Credentials you will have available BROWSE BUCKETS button:

Clicking on this button will open the integrated S3-Browser and take you to the S3 Buckets page, where you can view all your previously created buckets, create new ones, browse objects inside the buckets, and perform other related actions:

If you haven’t created Object Storage Credentials yet, click on the CREATE S3 CREDENTIALS button and once you have completed this step, you will be able to use the BROWSE BUCKETS button:

To find more information about how to manage Object Storage Credentials, please, see the article - Object Storage Credentials.

Create bucket

To create a new S3 Bucket in the Cloud Console, do the following:

  • go to the S3 Buckets page and click on the CREATE BUCKET button in the upper left corner;
  • specify the name of the Bucket and click on the CREATE button:

After these steps the newly created Bucket will be added to the S3 Buckets page with private access, which is set as the default access setting:

Browse folders and files within a bucket.

To access and navigate through the folders and files inside a bucket, click on the Name of the corresponding bucket on the S3 Buckets page:

This action will redirect you to the inside Bucket page, where you can find:

  • Bucket Details Area and Panel with Quick Actions - this section displays basic information about the bucket, such as its name and whether it is set as public or private and provides various quick actions, including next options:
    • get the bucket’s URL (if it is public);
    • to change the bucket’s access settings (make it public or private);
    • delete the bucket;
    • perform multi-deletion for selected files/folders (become enabled once you have selected at least one object (file or folder)).

  • Create Folder Button and Upload Files Section - this section allows you to create a new folder directly within the bucket, providing an efficient way to organize your files and enables you to upload files to the bucket from your local machine, making it easy to add new content to the bucket;

  • Table of All Folders and Files, this section presents a comprehensive list of all folders and files stored within the bucket with their action icon, that opens a list of available management actions for the selected object:
    • download file (currently you can download only separate files);
    • show object url (available only if object has public visibility);
    • delete object.

To browse inside folders within the bucket, click on the Name of the desired folder:

Inside the folder, you will have access to the same functionality as before, but on a deeper level. This allows you to continue navigating through the nested folder structure, perform actions like creating new folders or uploading files specific to the selected folder, and manage the files and folders within it.

To navigate to the parent level in the folder structure, click on the ../ icon and this action will take you up one level, allowing you to browse the contents of the previous folder in the hierarchy:

Create folder

To create a new Folder inside S3 Bucket in the Cloud Console, do the following:

  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page
  • click on the CREATE FOLDER button in the upper left corner;
  • specify the Name of the Folder and click on the CREATE button.

After these steps the newly created Folder will be added to the Bucket. Inside the folder, you will have access to the same functionality as before, but on a deeper level. This allows you to continue navigating through the nested folder structure, perform actions like creating new folders or uploading files specific to the selected folder, and manage the files and folders within it.

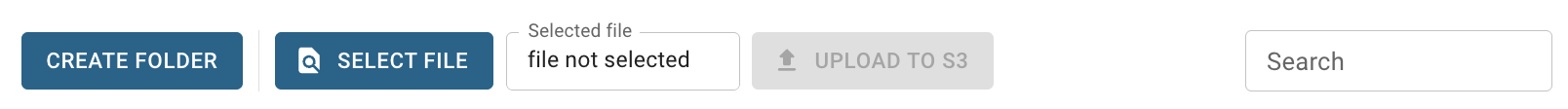

Upload file

As of the current limitations, the largest file you can upload via this integrated S3 browser is 5 GB.

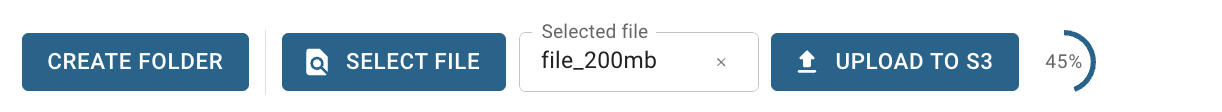

To upload a File inside S3 Bucket in the Cloud Console, do the following:

  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page and click on the SELECT FILE button;
  • on the appeared File selection dialog browse your local environment and choose the desired file you want to upload;
  • after selecting the file you will be able to use UPLOAD FILE button. Click on it to initiate the upload process, and you will see a loader icon indicating the progress of the upload:

If this is your first time attempting to upload a file to the selected bucket, the system may require you to set up CORS (Cross-Origin Resource Sharing) policies. In this case, a dialog window will appear asking you to grant permissions for console access to the specific bucket. Please click on GRANT PERMISSIONS to enable successful file uploading and proceed with the upload process.

Download file

As of the current limitations, you can only download separate files one by one using the integrated S3 browser. There is no direct option to download entire folders or multiple files at once.

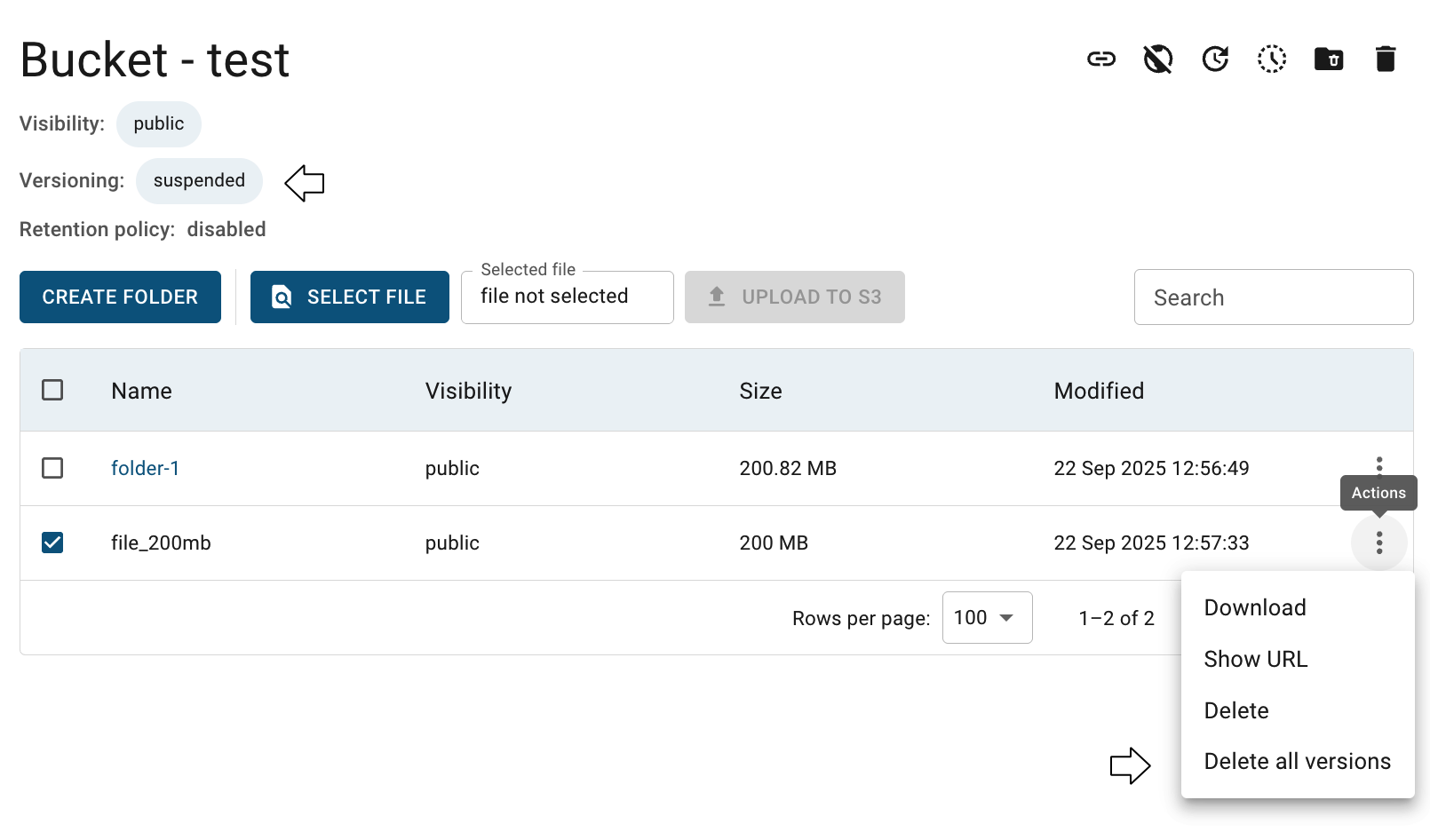

To download a File from S3 Bucket to your local environment, do the following:

  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page;
  • identify the file, that you want to download, on the Bucket page;

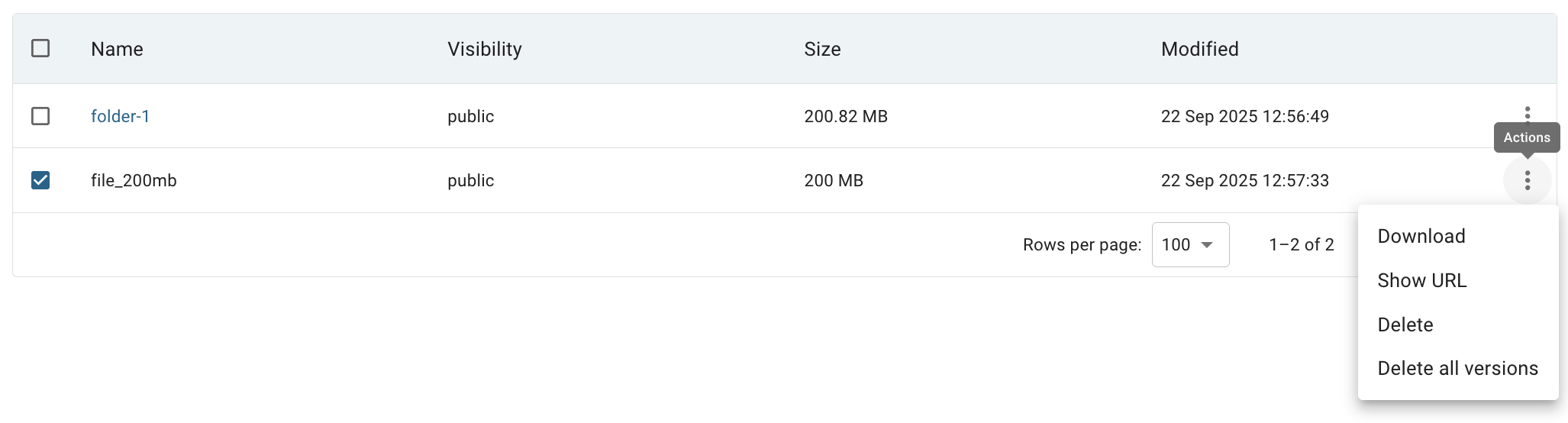

  • click on the Actions icon  and select the Download in the list of available options:

  • confirm your action on the next opened Confirmation window by clicking on the DOWNLOAD button.

After these steps, the downloading process of the selected file will start automatically.

Delete and multi-delete objects

To delete a object URL from S3 Bucket, do the following:

  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page;
  • identify the file or folder, that you want to delete on the Bucket page;
  • click on the Actions icon and select the Delete in the list of available options:

  • confirm your action on the next opened Confirmation window by clicking on the DELETE button.

After these steps, the selected file or folder will be deleted.

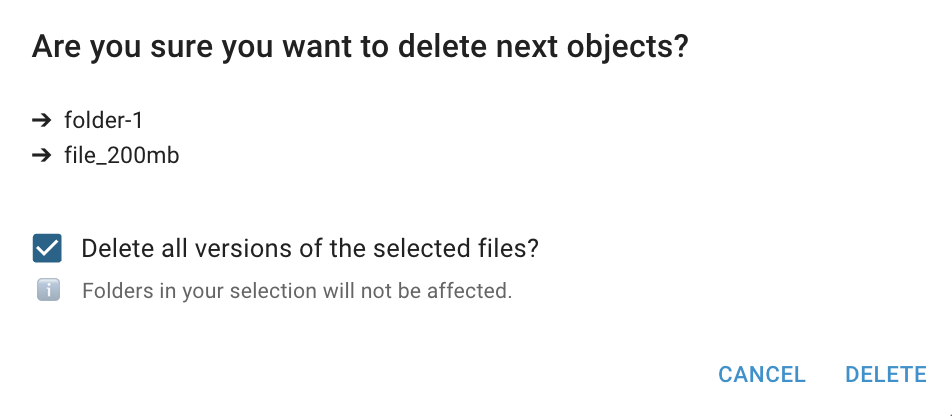

Also the integrated S3 browser allows you to perform multiple deletions of files and folders using the following steps:

  • make checks in the checkboxes of the files or folders that you want to delete;
  • click on the delete icon which will become enabled on the Panel with Quick Actions once you have selected at least one object (file or folder):

  • confirm your action on the next opened Confirmation window by clicking on the DELETE button.

After these steps, the selected objects will be deleted in a few seconds.

Make bucket public

You can make your bucket public from both the Buckets page and the inside of the selected Bucket page.

  1. To make your bucket public from the Buckets page, follow these steps:
  • go to the Buckets page in the Cloud Console;
  • find the bucket you want to make public;
  • click on the Actions icon and select the Make bucket public in the list of available options:

  • confirm your action on the next opened Confirmation window by clicking on MAKE PUBLIC button.
  1. To make your bucket public from inside the selected Bucket page, follow these steps:
  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page.

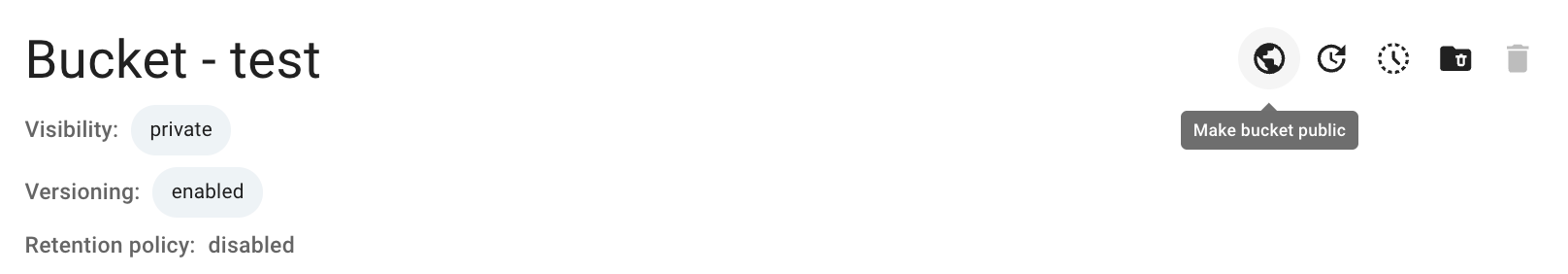

  • inside the bucket on the Panel with Quick Actions, click an option icon that allows you to change the bucket’s access permissions:

  • confirm your action on the next opened Confirmation window by clicking on MAKE PUBLIC button.

After these steps your bucket will be publicly available and you can obtain a URL that allows direct access to the entire bucket or to individual objects (files or folders) within it. This URL can be shared with others, and they will be able to access the bucket or objects directly through the provided link without requiring any special authentication or permissions.

Making a bucket public allows anyone to access its contents without requiring authentication or special permissions. Please be cautious when setting buckets to public, as it may expose sensitive data to the public. Always review and manage access controls carefully to ensure the security of your data.

Get bucket’s public URL

You can obtain the URL for S3 bucket only if the bucket is publicly available. In such cases, you can generate a URL that allows direct access to the entire bucket or to individual objects (files or folders) through the provided link. However, if the bucket is not publicly accessible, generating a URL will not grant access, and users will require appropriate authentication and authorization to access the bucket.

You can get your bucket’s public URL from both the Buckets page and the inside of the selected Bucket page.

  1. To get your bucket’s public URL from the Buckets page, follow these steps:
  • go to the Buckets page in the Cloud Console;
  • find the bucket which public URL you want to get;

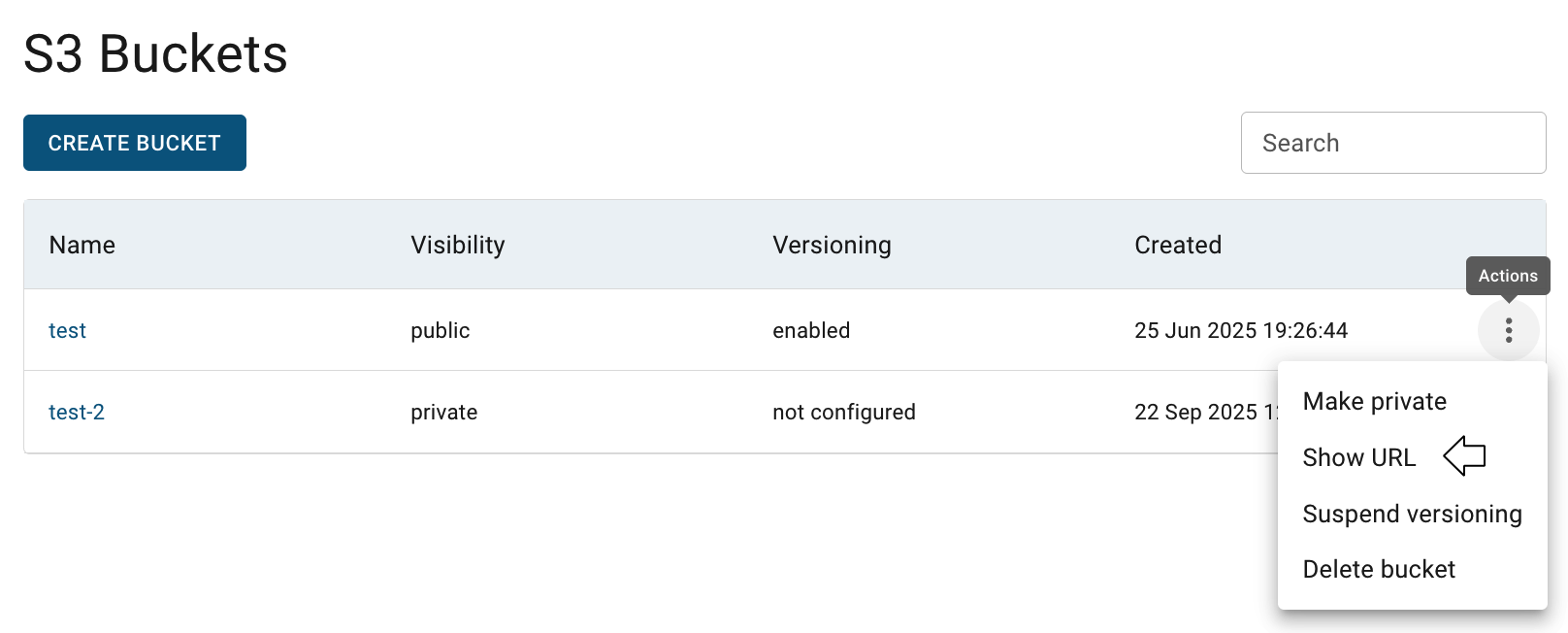

  • click on the Actions icon and select the Show URL in the list of available options:

  • the next opened window will provide your bucket’s URL and you can save it by clicking on the COPY TO CLIPBOARD button.

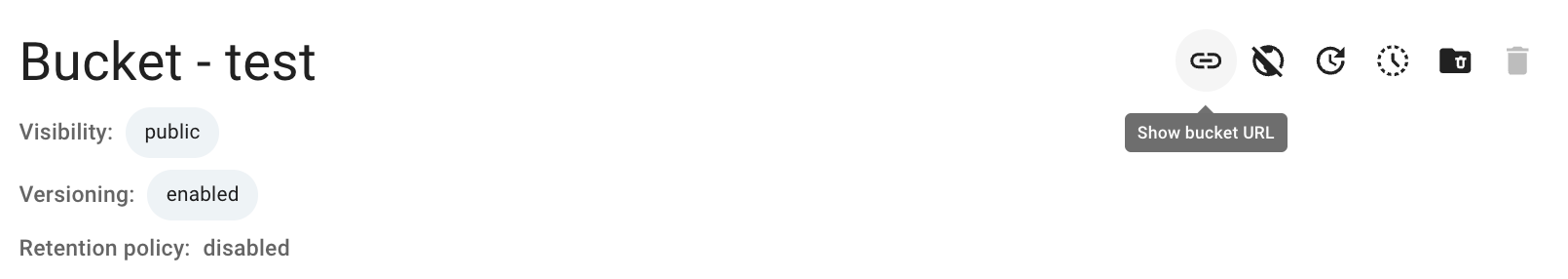

  1. To get your bucket’s public URL from inside the selected Bucket page, follow these steps:
  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page.
  • inside the bucket on the Panel with Quick Actions, click an option icon that allows you to see bucket’s URL (this icon will be available only if your bucket is public):

The next opened window will provide your bucket’s URL and you can save it by clicking on the COPY TO CLIPBOARD button.

Get object’s public URL

You can obtain the URL for a folder or file in an S3 bucket only if the object is set as publicly available. In such cases, you can generate a URL that allows direct access to the object through the provided link. However, if the object is not publicly accessible, generating a URL will not grant access, and users will require appropriate authentication and authorization to access the object.

To get an object’s public URL, do the following:

  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page;
  • identify the file or folder, which URL you want to get on the Bucket page;
  • click on the Actions icon and select the Show URL in the list of available options:

The next opened window will provide your object’s URL and you can save it by clicking on the COPY TO CLIPBOARD button.

Make bucket private

You can make your bucket private from both the Buckets page and the inside of the selected Bucket page.

  1. To make your bucket private from the Buckets page, follow these steps:
  • go to the Buckets page in the Cloud Console;
  • find the bucket you want to make private;

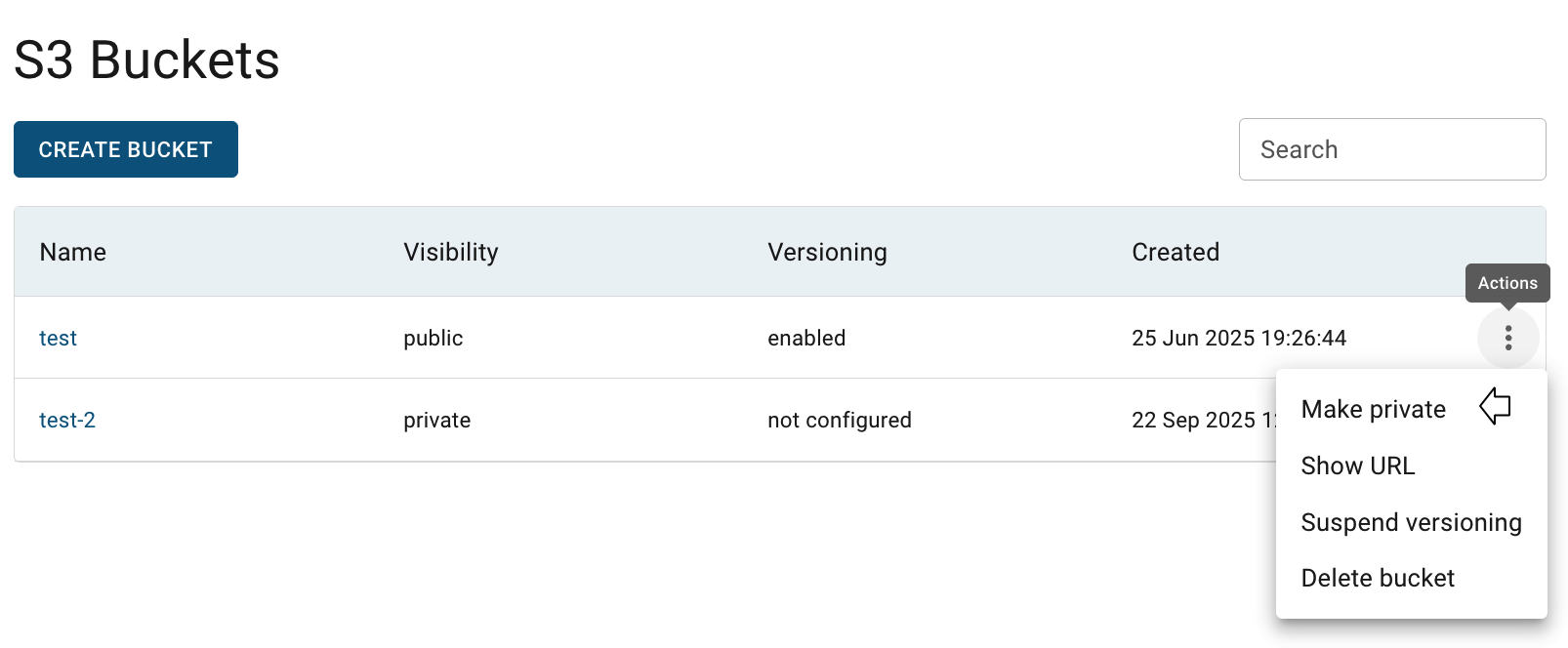

  • click on the Actions icon and select the Make bucket private in the list of available options:

  • confirm your action on the next opened Confirmation window by clicking on MAKE PRIVATE button.
  1. To make your bucket private from inside the selected Bucket page, follow these steps:
  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page;

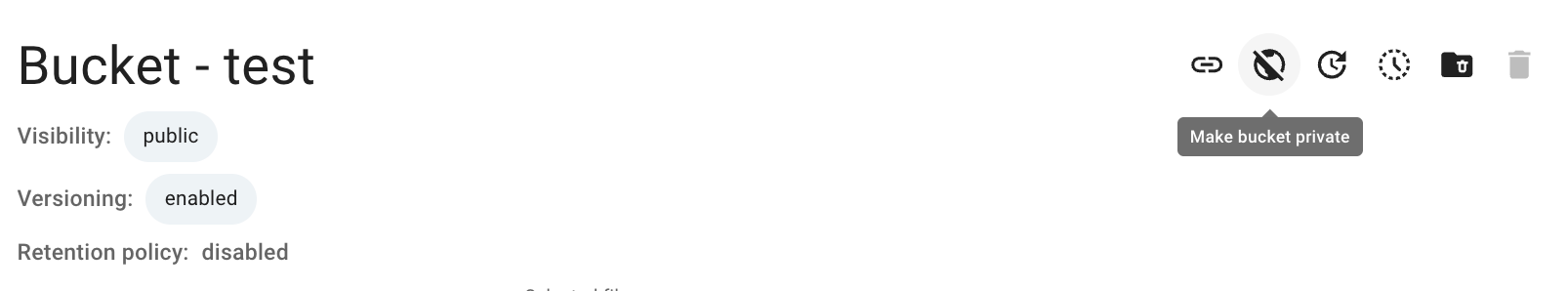

  • inside the bucket on the Panel with Quick Actions, click an option icon that allows you to change the bucket’s access permissions:

  • confirm your action on the next opened Confirmation window by clicking on MAKE PRIVATE button.

After these steps, your bucket will not be publicly available.
The access permissions will not allow the public to access the bucket or its contents through any direct URL. The objects within the bucket will remain private and can only be accessed by users with appropriate authentication and authorization.

Delete bucket

To avoid any potential data loss during the deletion process, in the Cloud Console, you can only delete a bucket if it is empty.

You can delete bucket from both the Buckets page and the inside of the selected Bucket page but before, please ensure that all the objects (files and folders) inside the bucket have been removed or moved to another location.

  1. To delete bucket from the Buckets page, follow these steps:
  • go to the Buckets page in the Cloud Console;
  • find the bucket you want to delete;
  • click on the Actions icon and select the Delete in the list of available options:

  • confirm your action on the next opened Confirmation window by clicking on DELETE button.
  1. To delete bucket from inside the Bucket page, follow these steps:
  • access the Bucket page in the Cloud Console by clicking on the name of the bucket from the Buckets page;

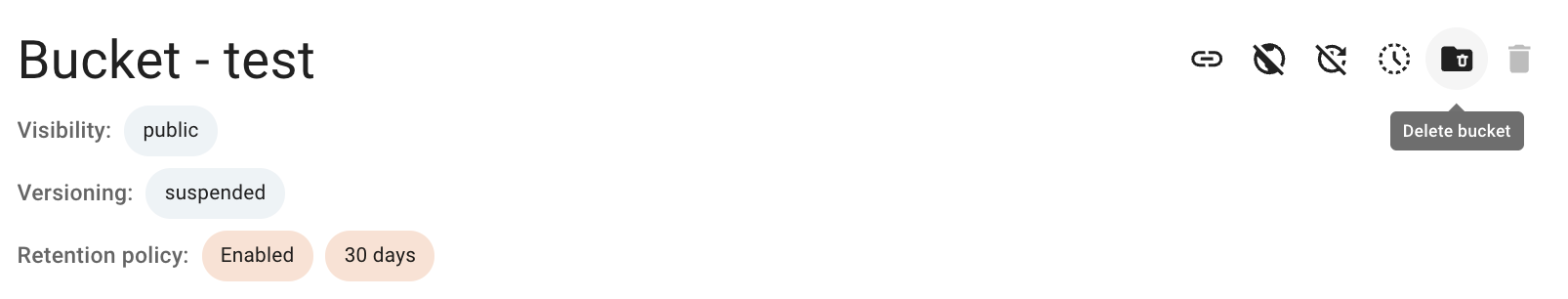

  • inside the bucket on the Panel with Quick Actions, click an option icon that allows you to delete bucket:

  • confirm your action on the next opened Confirmation window by clicking on DELETE button.

After these steps, your bucket will be deleted.
